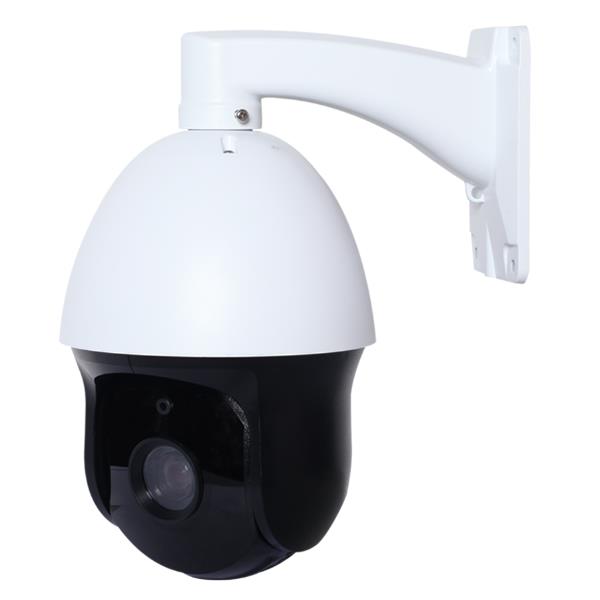

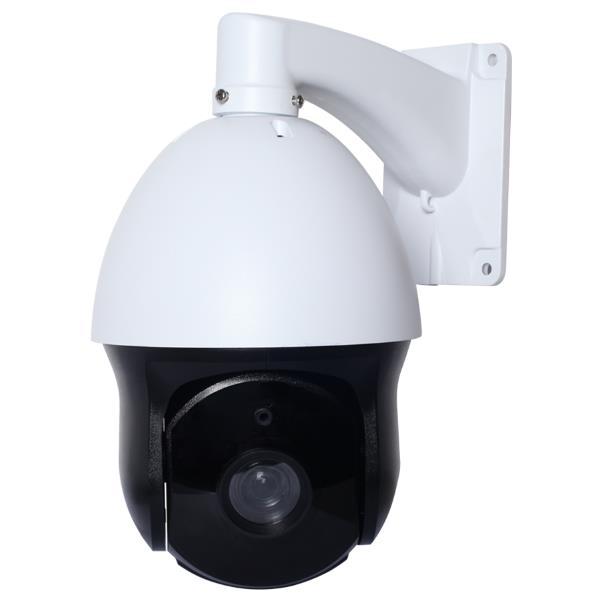

| PT5FH20XH800 | |
| Model | PT5FH20XH800 |
| Camera | |
| Image Sensor | 1/2.8" SONY Starvis Back-illuminated CMOS Sensor |
| Main Processor | Hi3516A |
| Horizontal Resolution | 8MP |
| Effective Pixels | 3840(H)*2160(V) |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec |
| Compression | H.265/H.264 |
| S/N Ratio | >50db |
| PTZ | |
| Horizontal Rotation Speed | 200°/S |
| Horizontal Rotation Range | 0°~360° |
| Tilt Rotation Speed | 100°/s |
| Tilt Rotation Range | 0°~90° |
| Preset Points | 220 |
| Guard Tours | 3 groups |
| Guard Points | Max.16 points |
| Lens | |
| Focus Length | 4.7mm-94mm |
| Focus Control | 20X Optical Zoom |
| Night Vision | |
| Infrared LED | ￠42x6PCS IR LEDS,+3PCS LED Laser |
| IR Range | 150m |
| Day-night mode | AUTO |
| Network | |
| Network protocol | TCP/IP, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, UDP, IGMP,P2P |
| ONVIF | Support ONVIF 2.4 |
| P2P | YES, Support QR Code |
| Network interface | Built-in RJ45 network interface,support 10M/100M IP DATA |
| Main Stream1 | 3840*2160@20fps |
| Main Stream2 | 2592*1536@25fps 2560*1440@25fps |
| Main Stream3 | 1920*1080@25fps 1280*720@25fps |
| IE Brower | IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), Mac Safari |
| Smart Phone | iPhone, iPad, Android, Android Pad |
| Interface | |
| Audio | Optional |
| WDR | 120DBWDR |
| Alarm | / |
| POE | Optional |
| General | |
| Housing | IP67+Vandalproof |
| Operating Temperature | Indoor: 0°~ +40° Outdoor: -40°~ +60° |
| Operating Humidity | ≤90% Non Condensing |
| Power | DC12V 4A |
| Lightning Protection | Transient voltage 6000V |
| Weight | 4.0Kgs |
